Wood chip-/ pellet boiler
firematic PELLET 120-201 kW

Power range 35,9 till 201 kW

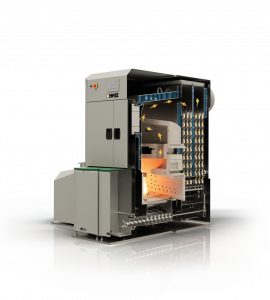

The HERZ firematic PELLET 120-201 kW is a biomass boiler for wood pellets and wood chips (M25 bzw. P16S). Compact, high efficient and economical.

  • The cleanest combustion thanks to Lambda probe control even with variable fuel quality.
  • The quiet operation of the boiler is thanks to its high-quality system components.
  • The lowest emission values to protect our environment

The great advantages of HERZ firematic PELLET 120-201 kW

  • Lateral insertion of wood pellets and wood chips into the combustion chamber
  • Cleaning of the grate via automatical tipping.
  • Due to the clean combustion grate an optimal air supply is ensured.
  • No manual cleaning necessary
  • The heat exchanger surface gets cleaned automatically via the integrated turbulators, even during heating operation, no manual cleaning necessary.
  • A consistently high level of efficiency by purified heat exchanger surfaces means lower fuel consumption.
  • The fly ash is taken into the front ash container via a discharge screw.
  • Via two ash discharge screws the combustion ash and fly ash is automatically transported into the ash container(s).
  • The removable ash container(s) with wheels enables simple and convenient emptying of the ash.
  • A built in lambda probe, which monitors continuously the flue gas content values, detects fuel quality changes and ensures optimum combustion and low emission values.
  • The Lambda probe controls the primary and secondary air supply to ensure a complete combustion, even in part load operation.
  • The results are lower fuel consumption and lowest emission values even with different fuel qualities.
  • Due to the compact design the insertion and assembly can be done very fast & easy.

EASY, MODERN AND COMFORTABLE

User-friendly touch-controller T-CONTROL

  • Convenient menu and simple screen layout
  • Possibility for remote visualization and remote maintenance via smartphone, PC or tablet PC
  • Data transfer and software updates via USB stick
  • Possibility of Modbus-Communication
