Wood chip-/ pellet boiler
firematic 20-60 kW

Power range 6 till 60 kW

The HERZ firematic 20-60 kW is a biomass boiler for wood chips and wood pellets. Compact, high efficient and economical.

  • The cleanest combustion thanks to Lambda probe control even with variable fuel quality.
  • The quiet operation of the boiler is thanks to its high-quality system components.
  • The lowest emission values to protect our environment

Brochure Download

Storage- and transport systems

Request now

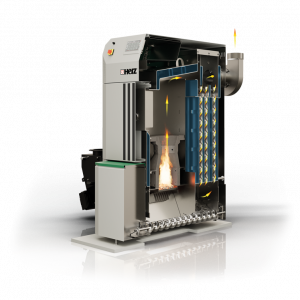

The great advantages of HERZ firematic 20-60 kW

  • Side load of wood chips or wood pellets into the combustion chamber.
  • Complete cleaning of the grate due to automatical tipping on a cleaning device.
  • Due to the clean combustion grate an optimum air supply is guaranteed
  • Minimizes the manual cleaning requirement.
  • The heat exchanger surface gets cleaned automatically via the integrated turbulators, even during heating operation, no manual cleaning necessary.
  • A consistently high level of efficiency thanks to cleaned heat exchanger surfaces enables low fuel consumption.
  • The fly ash is taken into the front ash container via a discharge screw.
  • Via two ash discharge screws the combustion ash and fly ash is automatically transported into the ash container(s).
  • The removable ash container(s) with wheels enables simple and convenient emptying of the ash.
  • A built in lambda probe, which monitors continuously the flue gas content values, detects fuel quality changes and ensures optimum combustion and low emission values.
  • The Lambda probe controls the primary and secondary air supply ensuring complete combustion, even in partial load operation.
  • The results are low fuel consumption and the lowest emission values even with different fuel qualities.
  • Due to the compact design the insertion and assembly can be done very fast & easy.

EASY, MODERN AND COMFORTABLE

User-friendly touch-controller T-CONTROL

  • The central control unit for:

    • Combustion control with lambda probe
    • Buffer management module
    • Weather-guided control for 1 mixed circuit (including outside sensor)
    • Control for domestic hot water preparation (via hot water tank or buffer with
      fresh water modul)
    • Return temperature rise
    • Lambda probe control (controls combustion air and fuel supply)
    • Activation for motorized valve for rapid heating of heating circuits in buffer operation

  • Convenient menu and simple screen layout ensures maximum user-friendliness

  • Offers extension possibilities up to 30 external modules:

    • Controlled heating circuits (actuator drive and pump)
    • Solar circuit control
    • Frost protection monitoring

Cascade operation

Using the HERZ T-CONTROL, up to 8 HERZ boilers equipped with T-CONTROL can be switched to cascade (CAN BUS). A special advantage of the cascade arrangement is the efficient utilization of the boiler at lower heat consumption (eg in the transitional period).

HERZ Kaskadenbetrieb

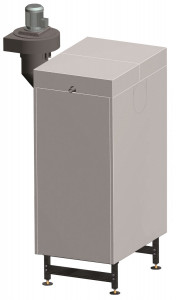

HERZ ECOcond

Flue gas condenser for dust reduction and efficiency optimization

  • Fuel savings of up to 10% through condensing technology*
  • Dust separation efficiency up to 50%*
  • Increase in overall system efficiency
  • Suitable for both new installations and retrofitting existing systems

*depending on operating conditions (exhaust temperature, exhaust mass flow, system temperature, fuel, etc.)

Energy labelling

Biomass boiler A+
Biomass boiler with integrated system controller A+
