HEATING – COOLING – DOMESTIC HOT WATER PREPARATION WITH THE ENERGY OF OUR PLANET
The commotherm air-to-water heat pump is specifically designed for outdoor installation. It features the latest inverter technology, which allows the heating output of the heat pump to be perfectly adapted to the current outdoor temperature or the required flow temperature. It also uses the environmentally friendly refrigerant R32, ensuring maximum energy efficiency—even at low outdoor temperatures. The heat pump can be used for heating as well as for domestic hot water preparation. During the summer months, it can also be used for active cooling, creating a comfortable indoor climate. At night, the commotherm AWi-Mono operates in whisper-quiet mode thanks to the integrated “Silent Mode,” which allows up to three individually programmable time slots per day.
INDOOR UNIT (Control Kit)
The Control Kit is a wall-mounted indoor unit and includes the control technology for external connections.
INDOOR UNIT (Hydraulic unit)
The hydraulic unit is installed inside the building, is pre-wired internally, and can be connected to the outdoor heat pump with minimal effort.
Wall-mounted consisting of:
Hot Water Unit (HWU) (for power range 6 – 12 kW)
Advantages:

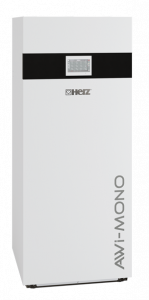

INDOOR UNIT: Hot Water Unit
The Hot Water Unit provides a compact, all-in-one solution for a heating system. The indoor unit connections allow for direct integration of the heating system and hot water distribution. Additionally, it comes standard with an electric auxiliary heater with safety thermostat, a highly efficient condensing pump with PWM control, a diverter valve for heating/hot water, and an enameled, insulated 350-liter hot water storage tank.
Space-saving and easy to install
With dimensions of 76 × 78 × 186 cm (W × D × H), the Hot Water Unit is extremely space-saving. It can be easily integrated into small technical rooms or utility rooms. With its attractive design, the indoor unit complements the appearance of spaces next to a washing machine and dryer. Thanks to intelligently positioned connections, clean and simple piping is possible. The connections are located at the back of the unit and can be connected from the sides, top, or rear without crossing..

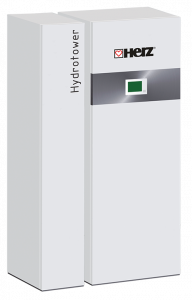

HERZ Hydrotower – The Space-Saving Marvel/span>
Sanitary, ventilation, and heating technology combined in a single device
The Hydrotower can be used as a supplement to the Hot Water Unit for the following heat pump models: commotherm AWi-Mono 6–12 kW
Advantages:
Available with:
The big advantages of the HERZ commotherm AWi-Mono
Standard version:
- Casing in anthracite gray matt fine-textured
- Top: high-quality HPL top
Active cooling in summer
In this mode, the function of the heat pump is reversed, allowing it to actively generate cooling instead of heat.
EASY, MODERN & COMFORTABLE
User-friendly touch-controller T-CONTROL
Energy efficiency class for room heating at 35°C flow temperature
| commotherm AWi-Mono with integrated system control |
A+++ |
